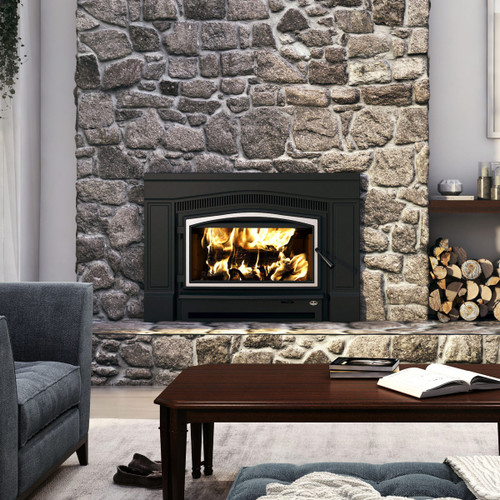

The Matrix wood insert impresses with its low 2.3 g/h emission rate and high 79% efficiency, meeting the latest 2020 industry standards. While maintaining its bold yet sleek design, we've enhanced the door mechanism for improved functionality. To complete your masonry hearth, a set of intermediate trim panels may be required. Experience the legendary quality Osburn is known for.
Options:
OB-AC01214 - Offset Liner Adapter
OB-AC01298 - 5" Diameter Fresh Air Intake Kit
OB-AC01315 - Rigid Firescreen
OB-AC01321 - Bottom Faceplate Backing Plate 44" x 6"
OB-AC01322 - 29" x 44" Faceplate Backing Plate Kit
OB-AC01323 - 2" or 4" Projection Kit for Insert
OB-AC01332 - 29" x 50" Faceplate Backing Plate Kit
OB-AC01333 - Bottom Faceplate Backing Plate 50" x 6"
OB-AC01349 - 5" Diameter Fresh Air Intake Register with Airtight Damper
General features
Chimney diameter : 6"
Height x Width x Depth - Overall: 25 1/8" X 36 1/8" X 23 1/8"
Average particulate emissions rate: 2.3 g/h
Maximum log length: 20"
Fireplace Opening - minimum (Height x Width x Depth): 23 3/8" X 28 7/8" X 19 5/8"
Shipping Weight: 491 lb (223 kg)
Recommended heating area -ft²: 500 -2100
Combustion technology: Non-catalytic
Maximum burn time: 8h
Blower Included: Yes
Overall firebox volume-ft³: 2.4
High-efficiency certified appliance: Yes, EPA 2020 approved
Log positioning: Loading over width
Type of chimney: Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet): 12'
Baffle type: C-Cast or equivalent
Approved for a mobile home installation: No
Warranty: Limited lifetime
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
United-States
Clearance - combustible side mantle to unit 9"
Clearance – combustible top mantle to unit 27"
Clearance - combustible side wall to unit 18"
Clearance - minimum floor protection in front of the appliance 16"
Clearance – from the top of the insert to the shelf 27"
Canada
Clearance - combustible side mantle to unit 9"
Clearance – combustible top mantle to unit 27"
Clearance - combustible side wall to unit 18"
Clearance - minimum floor protection in front of the appliance 18"
Clearance – from the top of the unit to the shelf 27"
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 19 5/8" X 11 7/8"
Glass air-wash system: Yes
Premium quality blower included (CFM): 90
Overall dimension (Height): 25 1/8"
Overall dimension (Width): 36 1/8"
Overall dimension (Depth): 23 1/8"
Door opening – dimension (Height): 8 3/4"
Door opening - dimension (Width): 17 1/2"
Firebox – dimension (Height): 11 7/8"
Firebox – dimension (Width): 21"
Firebox – dimension (Depth): 16 3/4"
Firebox lined with refractory bricks for better heat distribution: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Adjustable threaded legs: Yes
Steel thickness – body: 3/16"
Steel thickness - top: 5/16"
Fireplace opening - minimum (Height): 23 3/8"
Fireplace opening - minimum (Width): 28 7/8"
Fireplace opening - minimum (Depth): 19 5/8"
USA standard (emissions): EPA / ASTM WK47329
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482, UL 737
Canadian standard (safety): ULC S628
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Appliance performance (1)
Fuel Type: Dry cordwood (16" recommended)
Recommended Heating Area ft² *: 500 - 2,100 square foot
Overall Firebox Volume ft³: 2.4
EPA loading volume-ft³ : 1.95
Maximum burn time*: 8h
Maximum Heat Output -dry cordwood (2): 75,000 BTU/h (22.0 kW)
Overall heat output rate < (2) (3): 14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW)
Average overall efficiency (dry cordwood) (3) : 72 % (HHV) (4) 77% (LHV) (5)
Optimum overall efficiency (6) (7) : 79%
Optimum heat transfer efficiency (8): 76%
Average particulate emissions rate (9) : 2.3 g/h
Average CO (10) : 69 g/h
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
(*) Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
(9) This appliance is officially tested and certified by an independent agency.
(10) Carbon monoxide.
